Material:
Electrolytic copper 99.9% suitable for contact with alcohol.
The boiler is equipped with:
- with temperature indicators
- System Safety/Overpressure Valve
- installed manhole (for loading distillation material)
- Special design for waste outlet, and installation of an automatic emptying system (cylinder/bottle).
- built-in stirring (mixer) for uniform and better heating of the material we are distilling

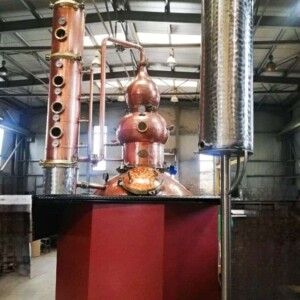

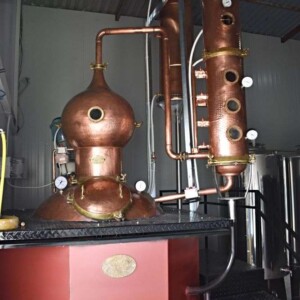

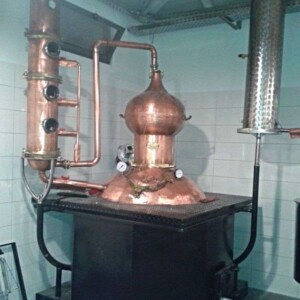

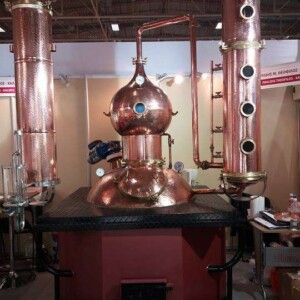

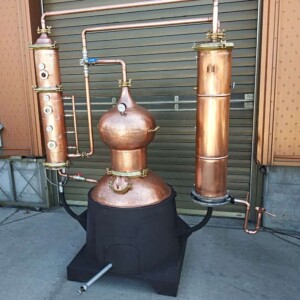

The AENAOS bell consists of a large diameter bubble and a controlled operation platform.

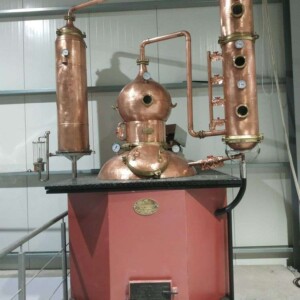

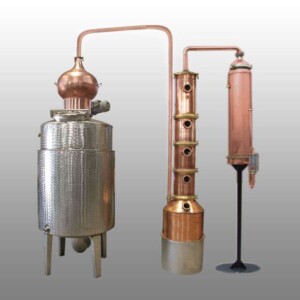

Column with 4 controlled-boiling plates and a reflux condenser, with visual inspection through heat-resistant sight glasses, for perfect demethanolization of the distillate.

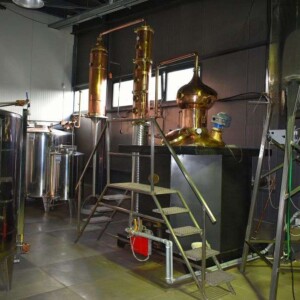

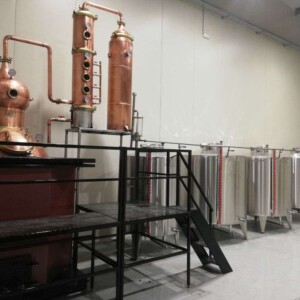

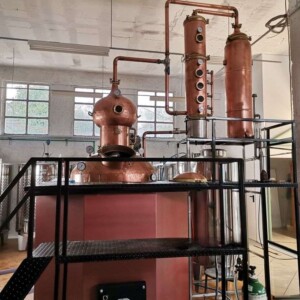

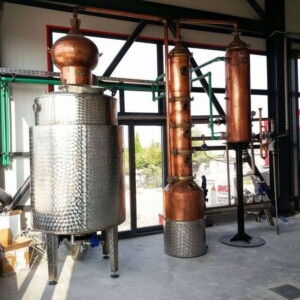

The fractional column with its plates is not integrated into the boiler but is supported upright alongside the boiler with a curved arm, or it rests on a stainless steel (INOX) base.
The cooling column is made of pure copper and consists of 50 tubes, which, at the point where we take the distillate, is placed a glass measuring the temperature and degrees of the distillate.
ADVANTAGES
- Space-saving,
- Reduced heat losses resulting in energy savings and faster distillation.
- Direct separation of heads and tails.
- Better quality final product.
METHOD OF COMBUSTION: High-pressure propane burner

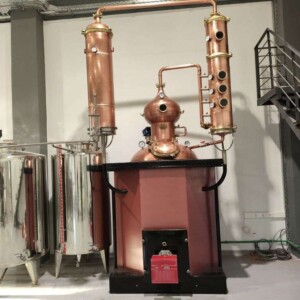

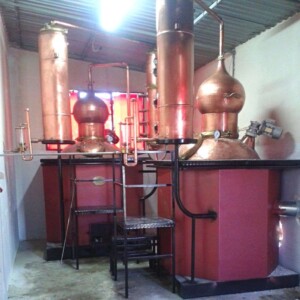

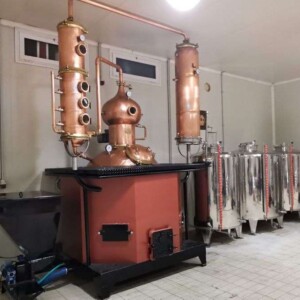

The still is placed inside a specially reinforced combustion oven. Inside, we’ve designed a spiral (snail) for exhaust gas utilization and fuel saving, resulting in uniform heating of the alembic.
- Propane, oil, steam, bain-marie, pellets and heartwood.
INNOVATION
Τα πτητικά συστατικά (βαρέα έλαια) επιστρέφουν στο κυρίως λέβητα (καζάνι) με separate σωλήνωση, με αποτέλεσμα τον καλύτερο διαχωρισμό κεφαλών –ουρών.
The alembic is constructed entirely from lead-free copper. The welds are specialized, as are the flanges used to connect each part of the alembic – the swan neck – and the cooler.
?
?
